Technical Specifications
Basic:
Maximum Frequency : Vector Control:0.00 ~300.00HzV/F Control:0.00
~3200.00Hz;Maximum Frequency
Carrier Frequency : 0.8kHz-16kHz Adjust carrier frequency from
0.8kHz-16KHz in depend on thetype of the load freely.
Digital Setting:0.01Hz Analog Setting:Maximum Frequencyx0.025%
;Input Frequency resolution
Control Mode:Open-loop Vector Control;V/F Control
Start Torque :G mode:0.25Hz/150%(SVC)
Speed Range :1:200(SVC)
Steady Speed Accuracy :±0.5%(SVC)
Torque Control Accuracy:±5%(SVC)
Overload Capacity:G mode 150% of rated current 60s
Torque Lifting :Automatical Torque Lifting ;Manual Torque
Lifting0.1% ~ 30.0%
V/F curve:5 Mode:Line Mode,Multipoint ModeSquare V/F ModeV/F
Separating Modeand Incompleted V/F Separeting Mode.
Acceleration-Deceleration Curve:0.0 s - 6500.0s-line or S curve
acceleration-deceleration mode,4 kinds of acceleration-deceleration
time,acceleration-deceleration time range 0.0s-6500.0s
DC braking :The frequency of DC braking:0Hz~maxmum
frequency:0%-100%Brakingacted current 0-100%;0-36s-Braking
time:0-36s
Jog Control :0.0s-6500.0s_-Jog acceleration-deceleration
time0Hz-50.00Hz-Jogfrequency range 0Hz-50.00Hz
Simple PLC and Multi-velocity :maximum get 16-segment of speed by
build in PLC or digital terminals
Build in PID :process control and close-loop control
Automatic Voltage Regulation :Steady output voltage automatically
when the grid no stable.
Fast Current Managing Protection :Over Current,Over Voltage And
Stall Protection;Control output voltage and current,preventing
frequent over current and overvoltage Minimizing overcurrent and
protecting drive.
Speed Limitation And COntrol :Controlling torque
automatically,preventing frequent tripTorque control is available
at vector mode
Special :
Instantaneous blackout without shutdown:Compensating DC BUS voltage
by braking when momentary outages.to keep the drive continue to
running for a short time.
Virtual IO :5 virtual DI/DOmultiple logic control :0.0min-
6500.0min
Timing control :Timer:The range of setting time
Multi-motor switching :2 group of motor paramaters,Arbitrary
switching between 2 motors
Command Source :Keyboard control,terminal control and RS485
control.
Frequency Source:11 kinds of frequency sourcekeyboard
number,keyboard potentionmeter,0-10V4-20mApulse
signal,communication.
Runing
Auxiliary Source :11 kinds of auxiliary frequency source,Strong
frequency fine tuning and synthesis.
Input Terminals :2 analog inputs,AI1 for 0-10V input;6 digtal
inputs,DI6 also can be 100kHzpulse input channal:AI2 for both 0-10V
and 0-20mA
Output Terminals :1 Analog output (AO1)A01 available for
0-20mA,4-20mA and 0-10V output.1 high-speed 100kHz pulse output
(NPN and PNP):1 relays
Protection :Motor Short-circuit.output loss phase,over current,over
voltage,low voltageover heatover load etc.Brake circuit
protection:over load,short circuit,brakeresistor protection.

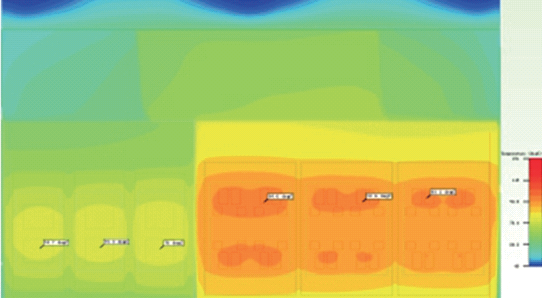

Long-Life Technology
