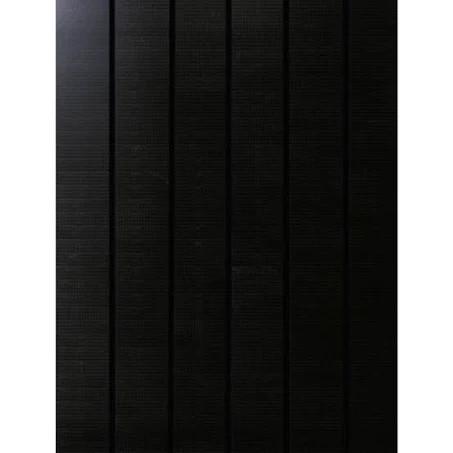

410W Full Black Half Cut 500W Solar Panel Monocrystalline Photovoltaic

410W Full Black Half Cut 500W Solar Panel All Black Mono Solar PV Module

Cell size:182mmx182mm
Type:PERC, Half Cell, Bifacial, Double-glass, All Black
Panel Dimensions:1722x1134x30mm
Panel Efficiency:21.0%
Certificate:TUV CE CQC ISO IEC INMETRO RETIE JPAC
External Dimensions:1724x1134x30mm
Product name:Solar Panel
Weight:20.5g
Solar cells:Mono 182*182mm
Front Glass:AR Coated 2.0+2.0 mm tempered glass
Frame:Anodized Aluminium Alloy
Junction Box:IP68
Output cables:1.2m
Connector:MC4 EVO2
Mechanical Load:Front Side Max. 5400Pa, Rear Side Max. 2400Pa

410W Full Black Half Cut 500W Solar Panel All Black Mono Solar PV Module

Module	All Black Mono Solar PV Module
Rated Power-Pm (W)	385	390	395	400	405	410
open-circuit Voltage-Voc(V)	36.76	36.85	36.98	37.07	37.23	37.32
short-circuit Current-Isc(A)	13.53	13.61	13.70	13.79	13.87	13.95
Working Voltage-Vmp(V)	30.44	30.64	30.84	31.01	31.21	31.45
Working Current-Imp(A)	12.65	12.73	12.81	12.90	12.98	13.04
Module Efficiency (%)	19.8	20.0	20.2	20.5	20.8	21.0

410W Full Black Half Cut 500W Solar Panel Monocrystalline Photovoltaic
