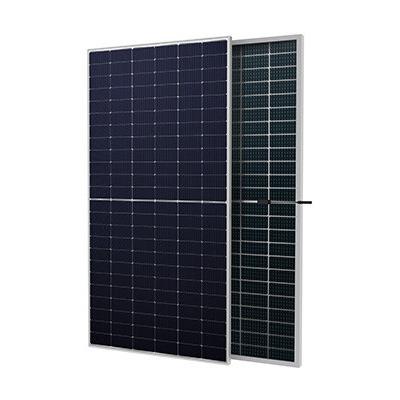

535W-555W Bifacial Solar Module IP68 Monocrystalline Photovoltaic

Product Categories

Beijing MITSCN Co., Ltd.

Contact Now

535W-555W Bifacial Solar Module IP68 Monocrystalline Photovoltaic

Ask Lasest Price
Brand Name :	MITSCN
Certification :	ISO
Price :	Negotiable
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	100000 Piece/Pieces per Month
Delivery Time :	5-8 working days

Add to Cart

Product Details
Company Profile

535W-555W Bifacial Solar Module IP68 Monocrystalline Photovoltaic

RS6-535_555MBG (182-144 bifacial module with dual glass)

Complete System and IEC Product Certification IEC 61215(2016),IEC 61730(2016) ISO9001: 2015:Quality Management System ISO14001: 2015:Environment Management System ISO45001:2018:Occupational Health and Safety Management System

Electrical Characteristics STC

RS6-535MBG-E3

RS6-540MBG-E3

RS6-545MBG-E3

RS6-550MBG-E3

RS6-555MBG-E3

Maximum Power (Pmax)

535W

540W

545W

550W

555W

Power Tolerance

0~+5W

Module Efficiency

20.71%

20.90%

21.10%

21.29%

21.48%

Maximum Power Current (Imp)

12.90A

12.97A

13.04A

13.12A

13.19A

Maximum Power Voltage (Vmp)

41.50V

41.65V

41.80V

41.95V

42.10V

Short Circuit Current (Isc)

13.78A

13.85A

13.92A

13.98A

14.04A

Open Circuit Voltage (Voc)

49.35V

49.50V

49.65V

49.80V

49.95V

Values at Standard Test Conditions STC(AM1.5, Irradiance 1000W/m², Cell Temperature 25°C)

Electerical Characteristics NOCT	RS6-535MBG-E3	RS6-540MBG-E3	RS6-545MBG-E3	RS6-550MBG-E3	RS6-555MBG-E3
Maximum Power (Pmax)	399.9W	403.6W	407.4W	411.1W	414.8W
Maximum Power Current (Imp)	10.38A	10.43A	10.49A	10.56A	10.61A
Maximum Power Voltage (Vmp)	38.55V	38.69V	38.83V	38.97V	39.11V
Short Circuit Current (Isc)	11.14A	11.20A	11.25A	11.31A	11.35A
Open Circuit Voltage (Voc)	46.40V	46.54V	46.68V	46.82V	46.97V

NOCT, lrradiance of 800W/m ², AM1.5, Ambient Temperature 20 °C, wind Speed 1m/s.

Electrical Characteristics with 21% rear side power gain	RS6-535MBG-E3	RS6-540MBG-E3	RS6-545MBG-E3	RS6-550MBG-E3	RS6-555MBG-E3
Maximum Power (Pmax)	647W	653W	659W	666W	672W
Maximum Power Current (Imp)	15.61A	15.69A	15.78A	15.88A	15.96A
Maximum Power Voltage (Vmp)	41.50V	41.65V	41.80V	41.95V	42.10V
Short Circuit Current (Isc)	16.67A	16.76A	16.84A	16.92A	16.99A
Open Circuit Voltage (Voc)	49.35V	49.50V	49.65V	49.80V	49.95V

Mechanical Characteristics		Characteristics
Cell Type	Monop-type,182×182(±1)mm,144(6×24)Half-Cut cells	Temperature Coefficient of Voc	-0.27%/°C
Glass	2mm+2mm ,High Transmission,Low lron,Tempered Glass	Temperature Coefficient of Isc	+0.04%/°C
Frame	Anodized Aluminum Alloy	Temperature Coefficient of Pmax	-0.35%/°C
Juction Box	IP68 Rated, With Bypass Diodes	Nominal Operating Cell Temperature (NOCT)	45°C±2°C
Dimension	2278x1134x30mm	Remark:Electrical data in this catalog do not refer to a single module and they are not part of the offer.l hey only serve for comparison among ditterent module types.
Output Cable	4 mm² (EU),300 mm,length can be customized
Weight	32.8kg
lnstallation Hole Location	See Drawing Above

Packing Information		Maximum Ratings
Container	40' HQ	Operating Temperature	-40°C~+85°C
Pallets per Container	20	Maximum System Voltage	1500VDC
Pieces per Container	720	Maximum Series Fuse Rating	30A
