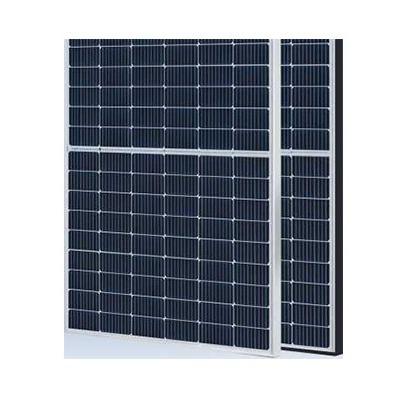

120 Cells Monocrystalline PV Module 585W 590W 595W 600W IP68 Rated

Product Categories

Beijing MITSCN Co., Ltd.

Contact Now

Name: 120 Cells Monocrystalline PV Module 585W 590W 595W 600W IP68 Rated
Brand: MITSCN
Price: 1 USD

Ask Lasest Price
Brand Name :	MITSCN
Certification :	ISO
Price :	Negotiable
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	100000 Piece/Pieces per Month
Delivery Time :	5-8 working days

Add to Cart

Monocrystalline Bifacial Dual Glass PV Module:(580-615W) MITMC6-H120

Electrical Specification (STC*)

Number of Cells	120 Cells (6x20)
Dimensions of Module LWH (mm)	2172x1303x35mm (85.51x51.30x1.38 inches)
Weight (kg)	30.9 kg
Glass	High transparency solar glass 3.2mm (0.13 inches)
Backsheet	White
Frame	Silver, anodized aluminium alloy
J-Box	IP68 Rated
Cable	4.0mm2 (0.006 inches2), Portrait: 280/280mrr)(11.02inches)
Number of diodes	3
Wind/ Snow Load	2400Pa/5400Pa*
Connector	MC Compatible

Maximum Power	Pmax(W)	580	585	590	595	600	605	610	615
Maximum Power Voltage	Vmp(V)	33.56	33.76	33.96	34.16	34.36	34.56	34.76	34.96
Maximum Power Current	ImplA]	17.28	17.33	17.37	17.41	17.46	17.50	17.55	17.59
Open Circuit Voltage	Voc(V)	40.65	40.85	41.05	41.25	41.45	41.65	41.85	42-05
Short Circuit Current	lsc(A)	18.34	18.40	18.45	18.50	18.55	18.61	18.66	18.71
Module Efficiency	(%)	20.5	20.7	20.8	21.0	21.2	21.4	21.6	21.7
Power Output Tolerance	(W]					0~+5
Irradiance 1000W/m2. Cell Temperature 25°C, Air Mass 1.5 Electrical Specification (NM0T*)

Maximum Power	Pmax(W)	438.1	442.6	446.4	450.2	454.0	457.7	461.5	465.3
Maximum Power Voltage	Vmp (V)	31.26	31.50	31.69	31.88	32.06	32.25	32.43	32.62
Maximum Power Current	Imp (A]	14.02	U.05	14.09	14.12	14.16	14.19	14.23	14.27
Open Circuit Voltage	VoclV]	38.30	38.48	38.67	38.86	39.05	39.24	39.43	39.62
Short Circuit Current	Isc (A)	14.79	14.83	14.87	U.92	14.96	15.00	15.04	15.09
Irradiance 800W/m2, Ambient Temperature 20°C, Wind Speed 1m/s Mechanical Data

Monocrystalline Bifacial Dual Glass PV Module:(580-615W) MITMC6-H120

Delivers Reliable Performance Over Time
World-class manufacturer of crystalline silicon photovoltaic modules
Fully automatic facility and world-class technology
Rigorous quality control to meet the highest standard: ISO 9001 ,ISO 14001 and ISO 45001
Tested for harsh environments salt mist, ammonia corrosion and sand blowing test: IEC 61701 ,IEC 62716.DIN EN 60068-2-68
Long term reliability tests
2x100% EL inspection ensuring defect-free modules
After 25 years our solar panel keeps at least 80% of itsinitial power output
