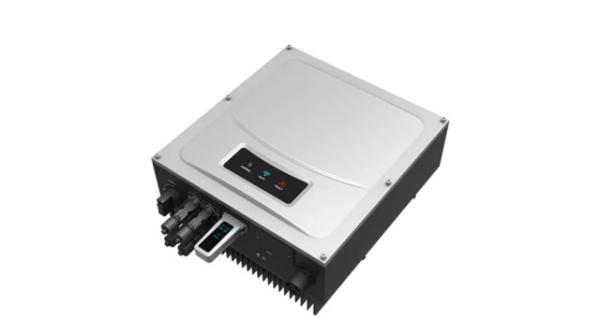

3600W 3600VA PV Inverter IEC62109 Solar On Grid Inverter Single Phase

On Grid Solar Inverter MITPC5K series PV inverters

Features:

· MPPT efficiency up to 99.50%

· Multiple communications: USB, WIFI etc

· Monitoring inverters freely via mobile phonese APP

· Fanless low-noise design

· IP65 water-proof and dust-proof

On Grid Solar Inverter MITPC5K series PV inverters

MODEL	MITPC5K-*****
RATED POWER(W)	2500	3000	3600	4200	4600	5000	6000
PV INPUT(DC)
Maximum recommended DC power(W)	2875	3450	4100	4800	5300	5750	7000
Nominal DC operating voltage(V)	360
Maximum DC voltage(V)	550
Start voltage(V)	100
MPPT voltage range(V)	80~550
Maximum input current(A)	11	11	11/11	11/11	11/11	11/11	11/11
No.of MPP tracker	1		2
Strings per MPP tracker	1
GRID OUTPUT(AC)
Nominal AC output power(W)	2500	3000	3600	4200	4600	5000	6000
Maximum AC output power(VA)	2500	3000	3600	4200	4600	5000	6000
Nominal output voltage(V);range(V)	220 / 230 / 240;180-280
AC grid frequency(Hz);range(Hz)	50/60;45~55/55-65
Nominal output current(A)	10.9	13	15.7	18.3	20.0	21.8	26.1
Maximum output current(A)	11.4	13.7	16.4	19.1	21.0	22.8	27.3
Total harmonic distortion i(THDi)	3.THDi@Full load &THDv <1%
Power factor at rated power	1
Displacement power factor	0.8leading ～ 0.8lagging
AC connection	Single phase
EFFICIENCY
Maximum efficiency	97.2%	97.2%	97.4%	97.4%	97.4%	97.4%	97.4%
Euro-efficiency	96.8%	96.8%	97.0%	97.0%	97.0%	97.0%	97.0%
MPPT efficiency	99.5%
Self-Consumption night(W)	<1
PROTECTION DEVICES
DC reverse polarity protection	Yes
DC switch rating for each MPPT	Yes
Output over current protection	Yes
Output overvoltage protection-varistor	Yes
Ground fault monitoring	Yes
Grid monitoring	Yes
Integrated all-pole sensitive leakage current	Yes
PHYSICAL
Dimension(W/H/D)(mm)	262368155	262368155	355412153	355412153	355412173	355412173	355412201
Net weight (kg)	10	10	13.5	13.5	14.5	14.5	16.5
INTERFACE
DC connection	H4/MC4
AC connection	Connector
Display	LED
Communication interfaces	Wi-Fi / USB / GPRS
ENVIRONMENT
Ingress protection rating	IP65
Humidity	0-100%
Operating temperature range	-25℃ ~+60℃ With derating above 45℃
Cooling concept	Natural
Noise emission(typical)[dB]	≤25
Altitude	<4000m
OTHERS
Topology	transformerless
Warranty	Standard 5years/10 years(opt.)
Certificatesand approvals	CE / IEC62109 / EN50549-1	CE / IEC62109 / CQC / EN50549-1
